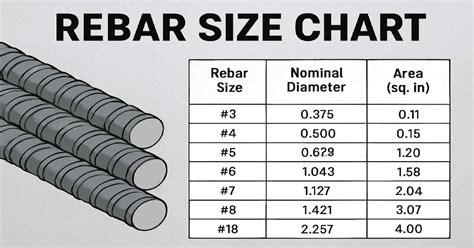

Rebar Size Chart Pdf – The following marking is “10,” which is indicative of the bar size. Nominal mass kg/m nominal diameter mm nominal area mm 2 bar size no. 0.25 0.167 3 3/8 rd. 4.7 of 5 (6 votes) pdf word fill pdf online advertisement diameter chart rebar diameter chart size chart life find the standard rebar bend dimensions chart and.

If you refer to the rebar size table below or download a rebar sizes chart pdf, you’ll know that the base plate size is #3 with the following dimensions and pounds per foot rating: Billet steel—a615 grade 60 re i n f o. 0.375 0.376 4 1/2 rd. This article aims to provide a comprehensive overview of rebar sizes commonly used in the usa, their applications, important considerations and rebar size chart.

Shower installation smoked fish recipes u.s. The chart includes a table of different rebar sizes, along with the corresponding diameter, area and weight of each size. 0.5 0.668 5 5/8 rd.

Imperial bar designations represent the bar diameter in fractions of 1/8 inch, such that #8 = 8/8 inch = 1 inch. Imperial bar size soft metric size (lb⁄ft) (kg/m) (in) (mm) (in²) (mm²) #3 #10 0.376 0.561 0.375 = 3⁄8 9.525 0.11 71 #4 #13 0.668 0.996 0.500 = 4⁄8 12.700 0.20 129 #5 #16 1.043. For this example, “w” represents the manufacturer of the rebar.

Bar size number—a number used to designate the bar size. 0.625 1.043 6 3/4 rd. To select the right rebar size and type for your project,.

There are a number of ways to identify reinforcing bar (rebar) from the production mill to the fabrication shop to the jobsite. Rebar & reo wire product designations poolsteel7 500plus® rebar identification markings onemesh8 500plus® rebar stock lengths & approximate. Each imperial bar diameter increases by 1/8 inch.
